PIN光探測器
有效直徑 75um
小暗電流
高可靠性
射頻光傳輸
PIN光探測器規格參數
范圍Range符號Symbol條件Condition參數值Parameter單位Unit儲存溫度Storage temperatureTstg--40~+100°C工作溫度Operating temperatureTop--40~+85°C反向電壓Backward voltageVRCW30V焊接時間Weld time--10s焊接溫度Weld temperature--260°C
范圍
Range
符號
Symbol
條件
Condition
參數值
Parameter
單位
Unit
儲存溫度
Storage temperature
Tstg
-
-40~+100
°C
工作溫度
Operating temperature
Top
-40~+85
反向電壓
Backward voltage
VR
CW
30
V
焊接時間
Weld time
10
s
焊接溫度
Weld temperature
260
PIN光探測器光電特性
參數Parameter符號Symbol最小值Min典型值Typ最大值Max單位Unit測試條件Test condition檢測范圍Test rangeλ850 1650nm-暗電流Dark currentId-15nAVR=5V,25°C量子效率Quantum efficiencyR0.80--A/WVR=5V,λ=1310 nm飽和功率Saturation powerP10--dBmVR=5V,25°C上升和下降時間Rising and Falling TimeTr/Tf-0.1-nsRL=50Ω反向電壓Backward voltageVR--15V-電容CapacitanceCt--0.75pFVR=5V回波損耗Return lossRL---45dB-
參數
最小值
Min
典型值
Typ
最大值
Max
測試條件
Test condition
檢測范圍
Test range
λ
850
1650
nm
暗電流
Dark current
Id
1
5
nA
VR=5V,25°C
量子效率
Quantum efficiency
R
0.80
A/W
VR=5V,λ=1310 nm
飽和功率
Saturation power
P
dBm
上升和下降時間
Rising and Falling Time
Tr/Tf
0.1
ns
RL=50Ω
15
電容
Capacitance
Ct
0.75
pF
VR=5V
回波損耗
Return loss
RL
-45
dB
PIN光探測器PIN分配(底視圖)
pinfunction1(case)ground2PD(-)3PD(+)
pin
function
1(case)
ground
2
PD(-)
3
PD(+)
四川梓冠光電PIN光探測器訂購信息
BandwidthSaddleFiber lengthFiber type Connector0:0~1GHz1:>1.8GHz2:>2.5GHz3:others 1=a2=b3=c4=d5=e6=othersA=0.5mB=1.0mC=others 1=SMF-282=50/125μm3=62.5/125μm4=PM5=others0=NO1=FC/APC2=FC/PC3=SC/APC4=LC5=OTHERS
Bandwidth

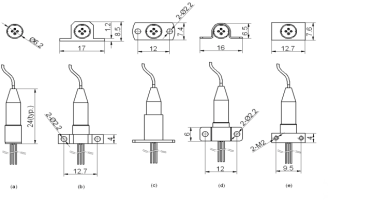

Saddle
Fiber length
Fiber type
Connector
0:0~1GHz
1:>1.8GHz
2:>2.5GHz
3:others
1=a
2=b
3=c
4=d
5=e
6=others
A=0.5m
B=1.0m
C=others
1=SMF-28
2=50/125μm
3=62.5/125μm
4=PM
5=others
0=NO
1=FC/APC
2=FC/PC
3=SC/APC
4=LC
5=OTHERS
PIN光探測器結構簡單,性能優異;主要用于短距離,小容量的光纖通信系統中
